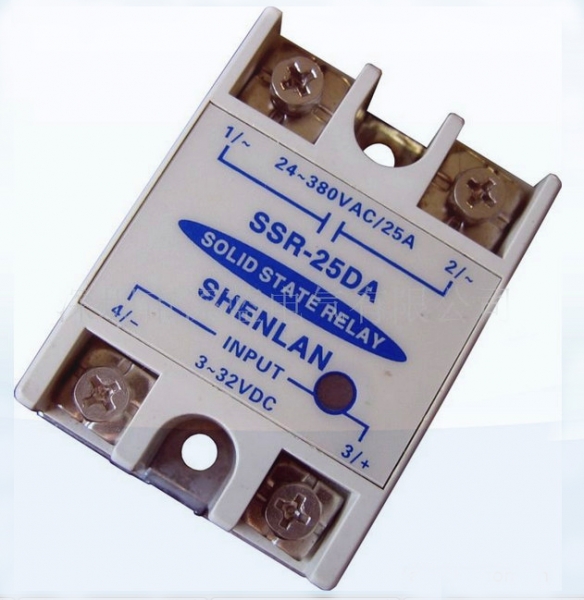

SSR-25DA 25Amp 380V Solid State Relay
SKU: EA-040501
|
Overview
SSR-25DA 25Amp 380V Solid State Relay
Easily driven from Arduino digital output pin.
See more details, applications on our WIKI here:
- Solid State Relay
- Description:Rated Load Current-25A
- Model:SSR-25DA Terminal Type
- Rated Load Current:25A
- Input
- Operating Voltage:3~32VDC
- Min. ON/OFF Voltage:ON>2.4V , OFF<1.0V
- Trigger Current:7.5mA / 12V
- Control Method:Zero Cross Trigger
- Output
- Operating Voltage:24~380VAC
- Min. Back Voltage:600 VAC (Repetive)
- Voltage Drop:1.6V / 25°C
- Max. Pulse Current:275A
- Leakage Current:3.0mA
- Response Time:ON<10ms , OFF<10ms
- General Data
- Dielectric Strength:Over 2.5KVAC / 1min.
- Isolation Strength:Over 50MO / 500VDC
- Operating Temperature:-20°C ~ +80°C
- Housing Material:Intensive ABS
- Weight:139g
Please see this about Precautions for using Solid State Relays
Please Read This Electrical Safety / Disclaimer page before using this product.
