Product Details
View Larger Image |

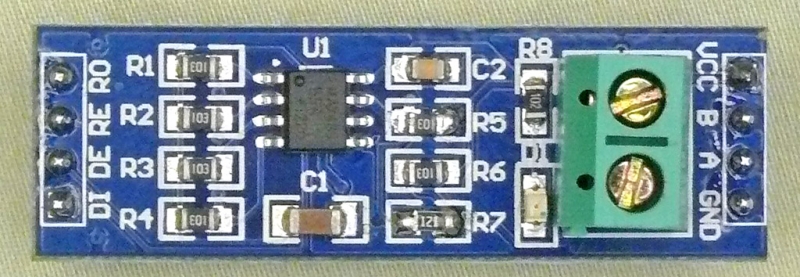

RS-485 module for Arduino (MAX485 )
SKU: EA-100901
|
Overview
RS-485 module for Arduino (MAX485 )
Click photo above for details, then hover over upper right for more photos.
This module interfaces an Arduino or similar microcomputer to RS-485. RS485 is used for Serial Communications over longer distances than direct RS232 or TTL, and supports multiple units on the same bus (Multi-Drop).
- Multiple Units can be connected to the same RS-485 wiring.
- All Chip pins are brought out for proper controls
- Working voltage: 5V
- Board size: 44 (mm) x14 (mm
THIS USB INTERFACE for use with PC's is available to connect by RS-485 (click)
See Example RS485 Network Diagram below.
SCHEMATIC OF THIS MODULE:
NETWORK DIAGRAM:
